A bandstop filter is made up of two passbands and one stopband so that the lower and higher frequencies of the input signal are passed while the intervening frequencies are attenuated. An idealized bandpass filter frequency response has the following shape.Ī bandstop frequency response can be achieved with either an FIR or an IIR filter. A bandpass filter is made up of two stopbands and one passband so that the lower and higher frequencies of the input signal are attenuated while the intervening frequencies are passed. An idealized highpass filter frequency response has the following shape.Ī bandpass frequency response can be achieved with either an FIR or an IIR filter. A highpass filter is made up of a stopband and a passband where the lower frequencies of the input signal are attenuated while the higher frequencies are passed. An idealized lowpass filter frequency response has the following shape.Ī highpass frequency response can be achieved with either an FIR or an IIR filter. A lowpass filter is made up of a passband and a stopband, where the lower frequencies of the input signal are passed through while the higher frequencies are attenuated. Specifying the frequency response of a filter thus determines which frequency bands of the input signal will be passed and which will be rejected.Ī lowpass frequency response can be achieved with either an FIR or an IIR filter. The output spectrum of a linear, time-invariant filter is a result of the product of the input signal spectrum and the filter's frequency response. The following illustration depicts the difference equation and structure for an IIR filter. However, when phase considerations are not an issue, a given magnitude response specification can be implemented more efficiently with an IIR filter. Filter responses with high frequency selectivity can be obtained using a few recursive coefficients.Īn IIR filter is generally unable to provide a linear phase response and its implementation is relatively more complex. Another major advantage of an IIR filter is its computational economy with respect to the filter implementation. A variety of classical frequency-selective filters can be designed using closed-form formulas. Simplicity of its design procedure is a major advantage of an IIR filter. The feedback in this system gives this filter an impulse response that is infinite in duration. Each output value in such a filter is calculated using previous outputs, as well as past and present input samples. The following illustration depicts the difference equation and implementation structure for a transposed FIR filter.Īn Infinite Impulse Response (IIR) type is a pole and zero or auto-regressive, moving average (ARMA) filter. It also can accurately approximate arbitrary frequency-response characteristics.Įven though a non-recursive design typically needs a large number of coefficients, it is inherently stable because it does not involve feedback. An FIR filter is able to provide pure linear-phase characteristics. In general the FIR design problem is easier to control in a wide range of practical situations. To specify the filter type for a design within Digital Filter Designer, click the desired option to select it.Ī Finite Impulse Response (FIR) type is an all-zero or moving average (MA) filter that uses past and present input samples to calculate the output value.For example, when linearity of phase is an issue, an FIR filter is a better choice because an IIR filter achieves its computational efficiency at the cost of nonlinear phase.

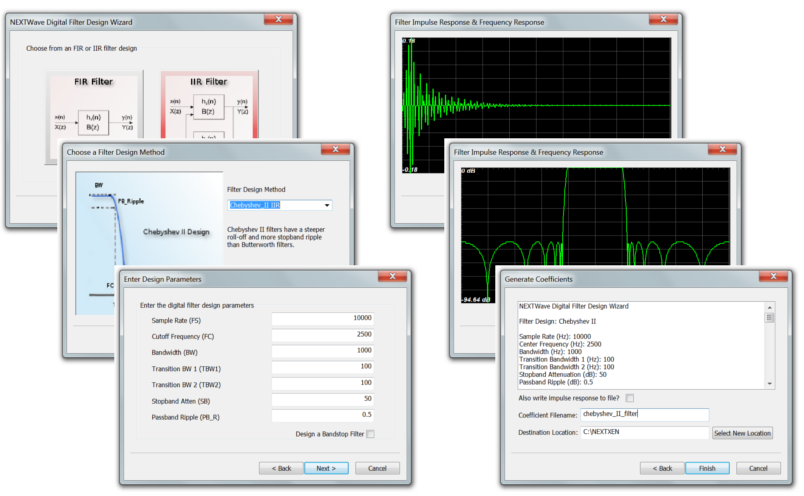

This step consists of defining the filter type, design method, and the filter order.Ģ. The two basic steps for designing a digital filter using Digital Filter Designer are:ġ. It also includes reference and background information on the available options. This section describes the steps involved in designing a digital filter.
